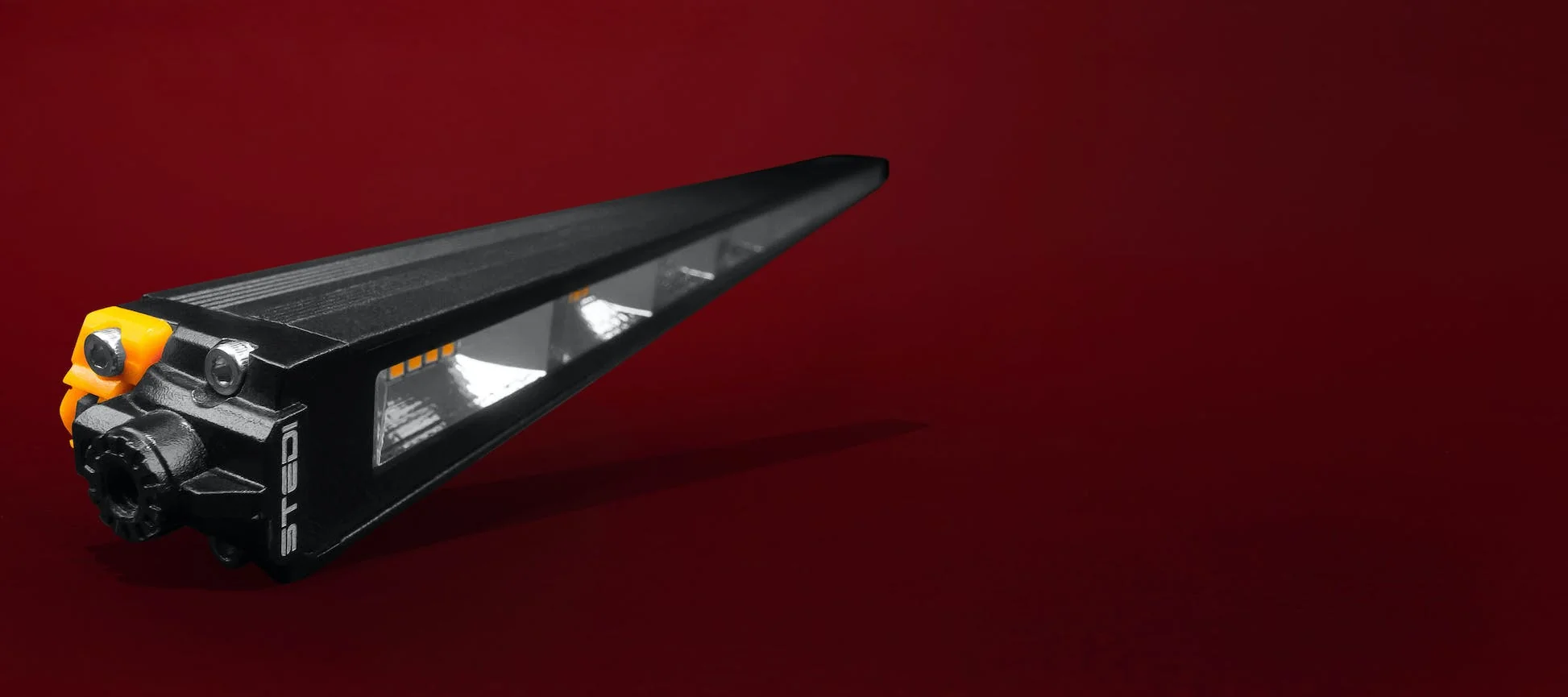

MICRO V2 26 INCH 48 LED FLOOD LIGHT (2700K)

THE NITTY
GRITTY.

KEY FEATURES AT A GLANCE

• IP67 Ingress Protection
• 6 x 3 Watt CREE LED
• Micro Profile at only 26mm
• Flood Beam - Perfect Rear Light, Awning Light, or bumper or bull bar voids.
• Waterproof Deutsch Connectors Male and Female with wire tails

TECH SPECS

OPERATING VOLTAGE	DC 10-28V
POWER CONSUMPTION	48W
AMP DRAW	4A@12V or 2.0A@24V
COLOUR TEMPERATURE	2700K
LED	48 x OSRAM GW PSLR 32. PM DRUISS
EFFECTIVE LUMEN	2600lm
BEAM ANGLE	Height: 30° Width: 120°
ENVIRONMENT TEMP	-40° to 60°C
IP RATING	IP68
LENS	Polycarbonate with Surface Hardening
FRAME/HOUSING	Extruded Aluminium
DT CONNECTOR	Included
MOUNTING BRACKET	304# Stainless Steel
LIFETIME	30,000hrs
SIZE (mm)	665 x 25 x 15
WEIGHT	0.8kg
CABLE LENGTH	400mm
CERTIFICATION	CISPR25
